Product

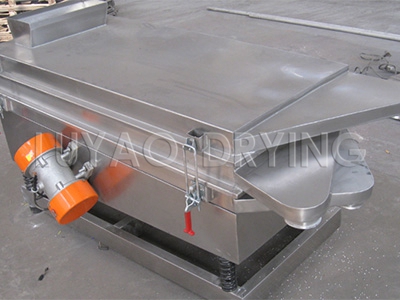

FS series square shaker
Profile：FS series square oscillating screen is composed of three parts: the inlet and outlet sieve box, vibration source and shock absorber. There are 4-6 sets of soft rubber shock absorbers connected between the machine bed and the screen box. The centrifugal force is generated when the machine is switched on. The eccentric block and damper are controlled correspondingly to achieve the required optimal working performance. And loose sieving process.
Detailed Description
Overview
??
This machine is composed of three parts: the inlet and outlet screens,
the vibration source and the shock absorber. There are 4-6 sets of soft
rubber shock absorbers connected between the machine bed and the screen
box. The centrifugal force is generated when the machine is switched
on. The eccentric block and damper are controlled correspondingly to
achieve the required optimal working performance. And loose sieving
process. Widely used in the pharmaceutical, food, chemical, metallurgy,
electronics and other industries to select the ideal equipment.
Technical specifications
| model | Production capacity (kg/h) | Mesh (mesh) | Motor power (kw/h) | Vibration frequency (r/min) | Exciting force (kN) | Upper exit height | Export height | Lower exit height | Dimensions (L×W×H) | Net weight (kg) |
| FS-0.5M2-X | 450 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 800 | 680 | 500 | 1300×770 ×1060 | 220 |
| FS-0.7M2-X | 650 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 | 1700×680 ×1100 | 280 |
| FS-0.8M2-X | 750 | 2-150 | 0.2×2 | 1400 | 0-2.5×2 | 850 | 750 | 530 | 1600×830 ×1150 | 320 |
| FS-1.2M2-X | 1100 | 2-150 | 0.2×2 | 960 | 0-5×2 | 880 | 760 | 520 | 1900×980 ×1220 | 450 |
