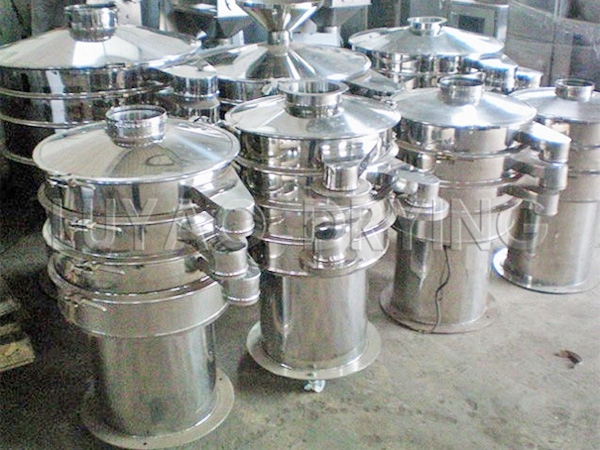

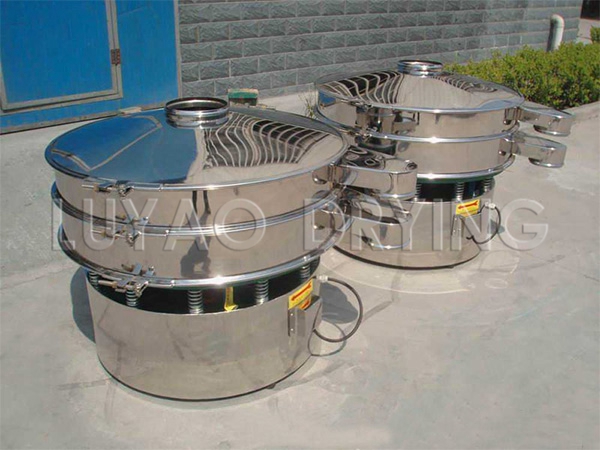

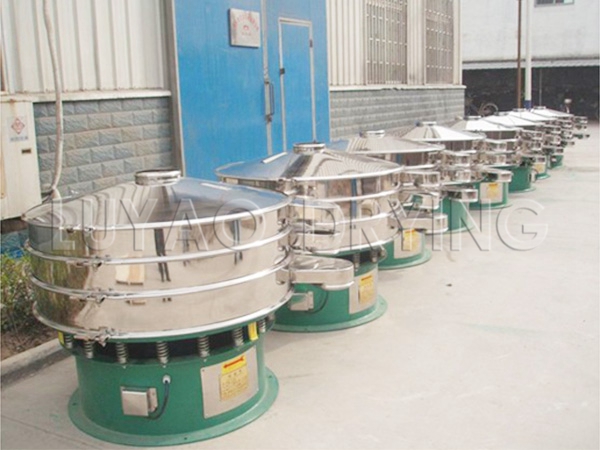

ZS Series Circular Oscillating Screen
Profile：ZS series circular oscillation screen consists of hopper, shaking chamber, coupling, motor. The oscillating chamber is composed of eccentrics, rubber software, spindles, and bearings. The adjustable eccentric weight is driven by the motor and transmitted to the centerline of the spindle. In the unbalanced state, the centrifugal force is generated, so that the strength of the material is changed and the orbital vortex is formed in the screen. The amplitude of the hammer adjuster can be adjusted according to different materials and screens.
Detailed Description
Overview
This machine consists of a hopper, an oscillation chamber, a coupling,
and a motor. The oscillating chamber is composed of eccentrics, rubber
software, spindles, and bearings. The adjustable eccentric weight is
driven by the motor and transmitted to the centerline of the spindle. In
the unbalanced state, the centrifugal force is generated, so that the
strength of the material is changed and the orbital vortex is formed in
the screen. The amplitude of the hammer adjuster can be adjusted
according to different materials and screens. The whole structure is
compact, small in size, non-dusting, low noise, high quality, low energy
consumption, and convenient mobile maintenance.
Technical specifications
| model | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| Production capacity (kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| Mesh number | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| Motor power (kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| Spindle speed (rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| Overall size (mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| Net weight (kg) | 100 | 180 | 250 | 300 | 350 | 400 |
