Product

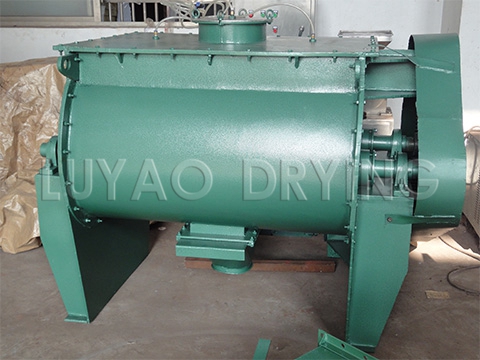

WZ Series Gravity Mixer
Detailed Description
Working principle
This series of mixers features strong and efficient mixing. Two mixing
wheels in the horizontal cylinder rotate at the same speed at the same
speed. The specially arranged paddle ensures that the material moves
radially, circularly, and axially in three directions to form a
composite cycle. Achieve uniform mixing in a very short time.
Product features
1, high mixing accuracy, high speed, low energy consumption, sealable operation.
2, pneumatic, electric, manual discharge method.
3. An atomization device can be arranged on the cylinder cover to achieve solid-liquid mixing.
Applications:
Chemicals, detergents, coatings, resins, glass silicon, pigments,
pesticides, fertilizers, feed, feed additives, wheat flour, milk powder,
spices, trace components, coffee, salt, additives, plastics and various
slurries, powders Drying and mixing.
Technical specifications
| Model specifications | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
| One time mixing kg | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Installed power kw | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
| Equipment weight kg | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
