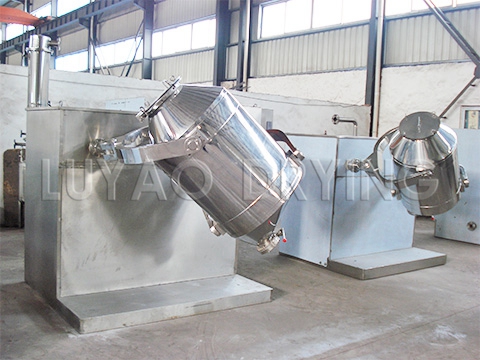

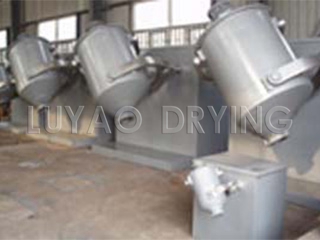

SYH Series 3D Motion Mixer
Detailed Description
Performance characteristics The
??
loaded cylinder is driven by the driving shaft to perform the compound
movements such as translation, rotation and rolling, which cause the
material to move along the cylinder in three directions, thereby
realizing the mutual flow and diffusion of multiple materials.
Accumulation and doping. To achieve the purpose of uniform mixing.
Adapt to the material
◎ This machine mixing bowl moves in many directions, the material has
no centrifugal force, no gravity segregation and delamination,
accumulation phenomenon, each component can have a large weight ratio,
high mixing rate, is an ideal product in a variety of current mixers .
◎The loading rate of the cylinder is large, up to 90% (only 50% for ordinary mixers), high efficiency and short mixing time.
◎ The barrel is full of circular transitions and is precision polished.
◎ It is used for
high uniformity mixing of powdery and granular materials used in
pharmaceuticals, chemicals, food, light industry, electronics,
machinery, mining and metallurgy, national defense industry, and various
research institutes.
Schematic
Technical specifications
| model | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
| Barrel volume (L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1,000 | 1200 | 1500 | 2000 |
| Maximum loading volume (L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| Maximum loading weight (kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| Spindle speed (r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| Motor power (kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Size (mm) | 600×1000 × 1000 | 800 × 1200 × 1000 | 1150 × 1400 × 1000 | 1250 × 1800 × 1550 | 1450 ×2000 ×1550 | 1650 ×2200 ×1550 | 1850 ×2500 ×1750 | 2100 × 2650 × 2000 | 2150 × 2800 × 2100 | 2000 × 3000 × 2260 | 2300 ×3200 ×2500 | 2500 × 3500 × 2800 |
| Weight (kg) | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
NOTE: Material Press bulk specific gravity 0.6 g of / cm & lt . 3 is a meter, such as beyond, indicate when ordering.
