Product

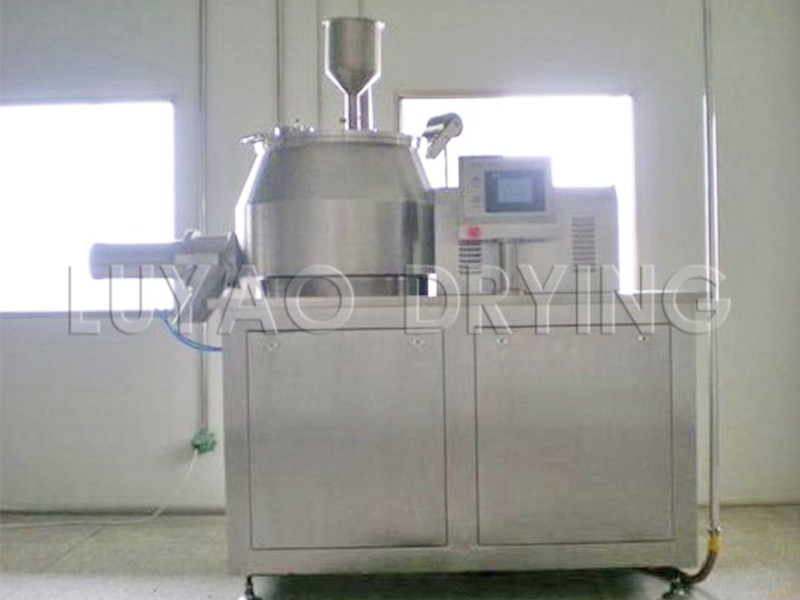

GHL Series High Speed ??Mixing Granulator
Detailed Description
Working Principle
Powder material and adhesive are fully mixed into a moist soft
material in the cylindrical container from the bottom mixing slurry, and
then cut into uniform wet particles by high-speed pulverizing paddles
placed on the side.
Performance characteristics
◎ This machine adopts horizontal cylinder structure, reasonable structure.
◎ Inflatable sealed drive shaft, switchable to water when cleaning.
◎ fluidized granulation, granulation approximate spherical, good fluidity.
◎ 25% less adhesive than traditional process, shorter drying time.
◎ Only dry mix 2 minutes for each batch, granulation 1-4 minutes, 4-5 times more efficient than traditional process.
◎Complete in the same closed container, dry mix-wet mix-granulation, process shortening.
◎ The entire operation has strict safety protection measures.
◎ can be made according to user requirements jacket type.
Technical specifications
| model | A | B | C×D | E | F |
| 50 | 320 | 950 | 1250×800 | 970 | 1650 |
| 150 | 420 | 1,000 | 1350×800 | 1050 | 1750 |
| 200 | 500 | 1100 | 1650×940 | 1450 | 2050 |
| 250 | 500 | 1160 | 1650×940 | 1400 | 2260 |
| 300 | 550 | 1200 | 1700×1000 | 1400 | 2310 |
| 400 | 670 | 1300 | 1860×1100 | 1550 | 2410 |
| 600 | 750 | 1500 | 2000×1230 | 1750 | 2610 |
| name | model | ||||||
| 50 | 150 | 200 | 250 | 300 | 400 | 600 | |
| Volume L | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Yield kg/batch | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Mixing speed rpm | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Hybrid power kw | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed rpm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
| Cutting power kw | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
| Compressed air consumption m3/min | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.5 | 1.8 |
| Weight kg | 500 | 800 | 1,000 | 1300 | 1800 | 2200 | 2600 |
