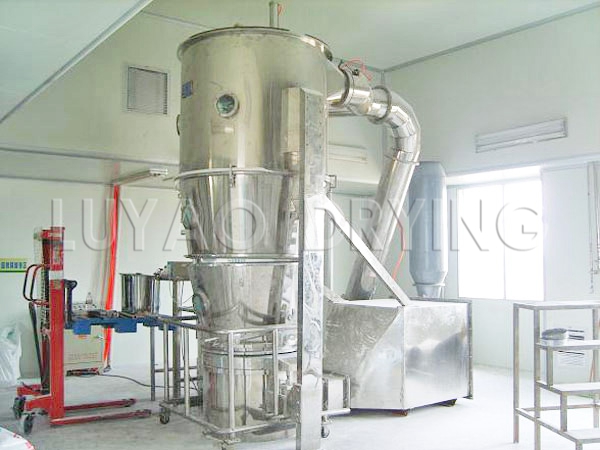

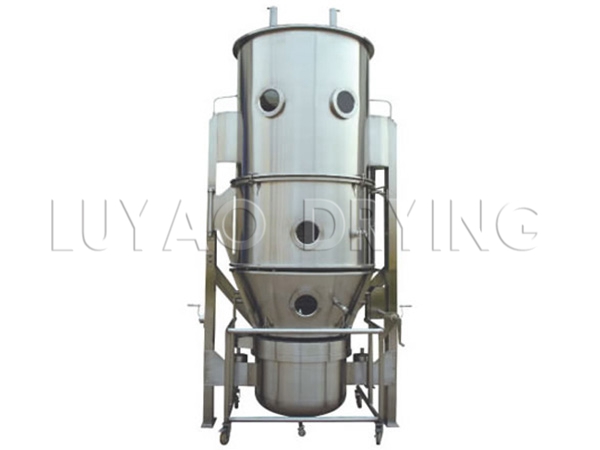

FL, FG Series Vertical Boiling (Pelletizing) Dryer
Detailed Description
Applications
◎ Pharmaceutical granulation and coating
?
granulation: Tablets, granules, capsules.
?
Coating: Granules, pills protective layer, color preparation, slow release, film, enteric coating.
◎ food granulation and coating
?
sugar, coffee, cocoa powder, cream, powdered fruit juices, amino acids, seasonings, puffed foods.
◎ Pesticides, pigments, dyes, granulation
◎ powder, granules, block materials dry
Performance characteristics
◎ Through powder granulation, improve fluidity, reduce dust flying;
◎ Through the powder granulation, to improve its dissolution performance;
◎ Mixing - granulation - Drying - completed in a machine (one-step granulation);
◎ Adopt Antistatic filter material, equipment operation safety;
◎ adhesive atomizer using a multi-fluid spray gun, uniform mist
particles, greatly improving the passing rate of finished products;
◎ no dead equipment, loading and unloading materials, light and fast, clean.
Schematic
1. Medium-efficiency filter 2, sub-high-efficiency filter 3, heater 4, damper valve 5, fluidized bed 6, infusion pump 7, compressed air 8, induced draft fan 9, silencer 10, shock absorber
Technical specifications
| specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | 500 |
| capacity | 12 | twenty two | 45 | 100 | 155 | 220 | 300 | 420 | 530 | 660 | 1,000 | 1500 |
| Processing capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
| Fan power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | twenty two | 30 | 37 |
| Steam consumption | 12 | twenty three | 42 | 70 | 99 | 141 | 169 | 211 | 251 | 282 | 366 | 451 |
| Compressed air consumption | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
| noise | (fan installation isolation) ≤75 | |||||||||||
| Dimensions | 1.0 × 0.55 × 1.8 | 1.2 × 0.6 × 2.1 | 1.25 × 0.9 × 2.1 | 1.6 × 0.9 × 2.3 | 1.65 ×1.1 ×2.4 | 1.85 × 1.25 × 3 | 1.85 × 1.25 × 3 | 2.2 × 1.65 × 3.1 | 2.27 × 1.72 × 3.1 | 2.34 × 1.9 × 3.5 | 2.8 × 1.9 × 3.8 | 3 × 2.55 × 4.2 |
Note: FG without granulation
