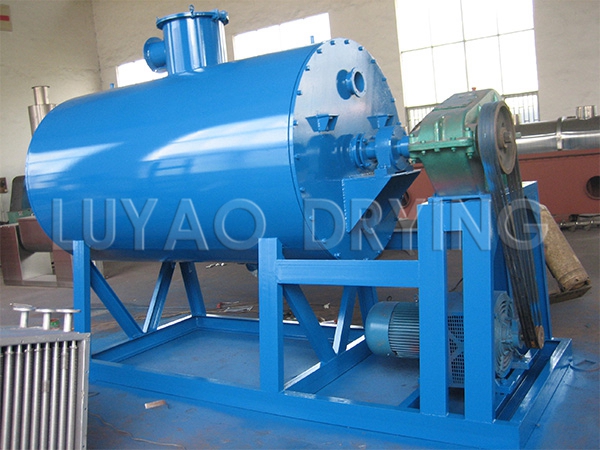

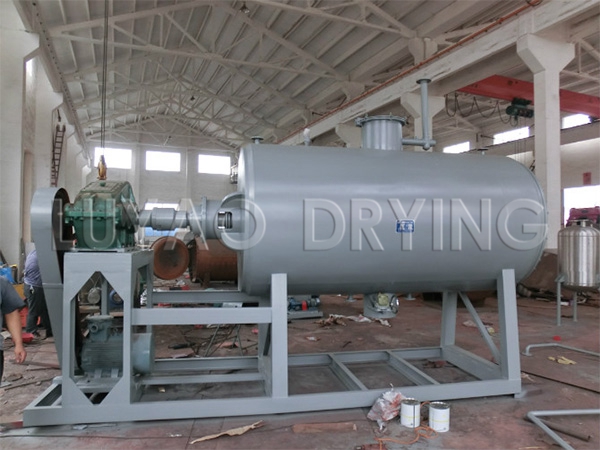

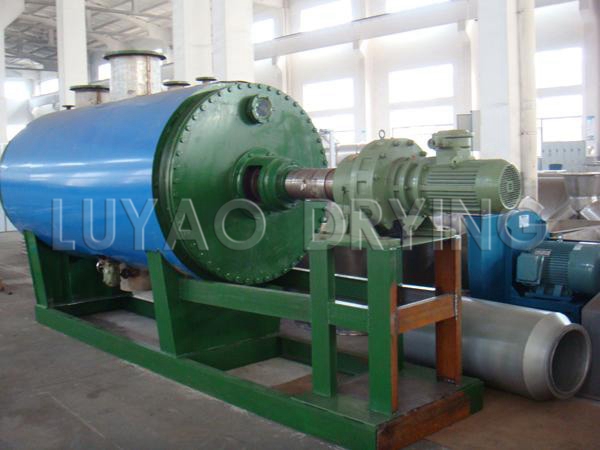

ZPG vacuum rake dryer
Detailed Description
Working principle
??This machine is a novel horizontal intermittent type vacuum drying equipment .
The wet material is conductively evaporated. The scraper stirrer
continuously removes the material on the hot surface and forms a
circulating flow in the container. After the water evaporates, Vacuum
pump out.
Performance characteristics
◎ This machine uses a large area of sandwich heating, heat transfer surface, high thermal efficiency.
◎ The machine is set to stir, so that the material in the cylinder to
form a continuous cycle of state, to further improve the uniformity of
the material heated.
◎ The machine is set to stir, so that the slurry, paste, paste material can be dried smoothly.
Adaptable materials
◎ Pharmaceuticals, food, chemical and other industries conduct the following materials drying:
◎ suitable for paste, paste, powder materials;
◎ heat-sensitive materials that require low temperature drying;
◎ easily oxidized, explosive, strong stimulation, highly toxic materials ;
◎ material recovery requires an organic solvent.
Schematic
Technical specifications
| project | model | ||||||
| name | unit | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 |
| Working volume | L | 300 | 450 | 600 | 900 | 1200 | 1800 |
| Heating area | m 2 | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 19.3 |
| Stirring speed | Rpm | 6-30 stepless speed regulation | |||||
| power | Kw | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Sandwich design pressure (hot water) | Mpa | ≤ 0.3 | |||||
| Vacuum inside the cylinder | Mpa | -0.09 to 0.096 | |||||
Note: The amount of water evaporation is related to the characteristics of the material and the hot air inlet and outlet temperatures. When the outlet temperature is 90 o C, the water evaporation curve is shown in the above figure (for selection reference). As the product is continuously updated, the relevant parameters are changed without prior notice.
