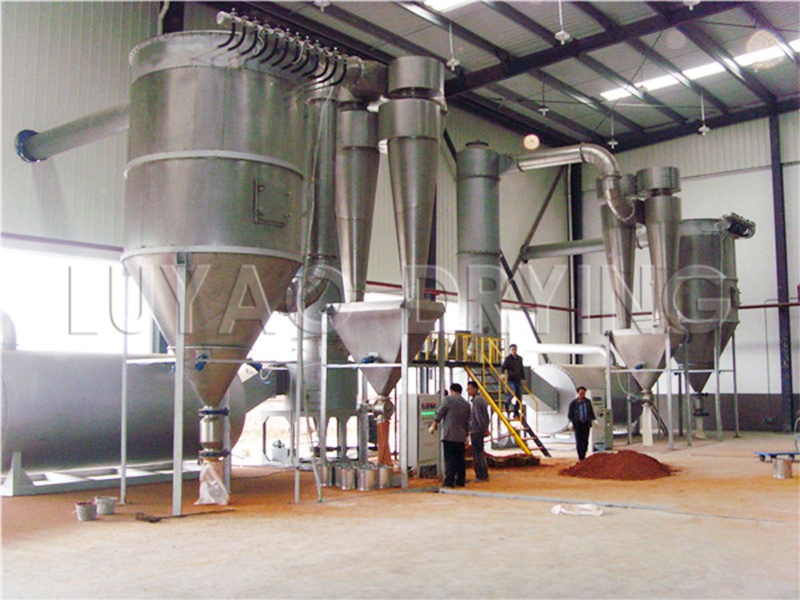

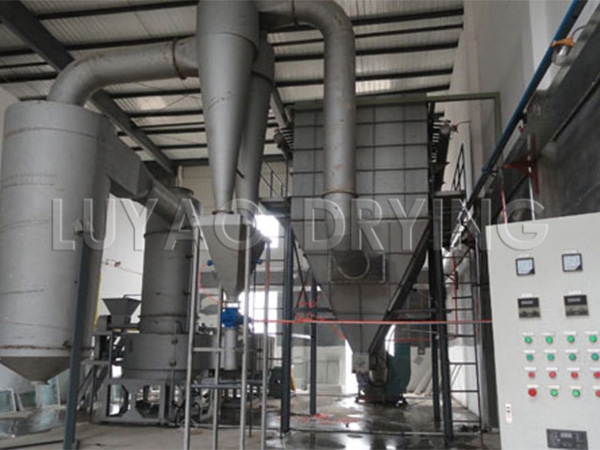

XSG Series Rotary Flash Dryer
Detailed Description
Working principle The
??
hot air tangent enters the bottom of the dryer and is driven by a
stirrer to create a powerful rotating wind field. The paste material
enters into the dryer through the screw feeder. Under the strong action
of the high-speed rotating paddle, the material is dispersed under the
action of impact, friction and shear force. The bulk material is quickly
crushed and fully contacted with hot air and heated. ,dry. The
dehydrated dry material rises with the hot gas flow. The grading ring
retains large particles. The small particles exit the dryer from the
center of the ring and are recovered by the cyclone separator and the
dust collector. It is not dried or the bulk material is affected by the
centrifugal force. And falling back to the bottom was crushed and dried.
Performance characteristics
◎ organic combination of swirling, fluidization, spouting and crushing and grading technology.
◎ Compact equipment, small size, high production efficiency,
continuous production, and realization of "small equipment, large-scale
production."
◎ Large drying strength, low energy consumption, high thermal efficiency.
◎ Short material residence time, good quality of finished product, can be used for heat-sensitive material drying.
◎ negative pressure or micro-negative pressure operation, good sealing, high efficiency, eliminate environmental pollution.
Adaptable materials
Organics: Atrazine (pesticides), lauric acid, benzoic acid, benzoic
acid, bactericide, sodium oxalate, cellulose acetate, organic pigments.
Dyes: Antimony, black iron oxide, indigo pigment, butyric acid,
titanium hydroxide, zinc sulfide, various azo dye intermediates.
Inorganic materials: borax, calcium carbonate, hydroxide, copper
sulfate, iron oxide, barium carbonate, antimony trioxide, various metal
hydroxides, various heavy metal salts, synthetic cryolite, and the
like.
Food: Soy protein, gelatinized starch, wine chute, wheat sugar, wheat starch, etc.
Technical specifications
| model | XSG-2 | XSG-4 | XSG-6 | XSG-8 | XSG-10 | XSG-12 | XSG-16 | XSG-20 |
| Host internal diameter mm | 200 | 400 | 600 | 800 | 1,000 | 1200 | 1600 | 2000 |
| Air volume M 3 /h | 350-500 | 1150-2000 | 2450-4500 | 4450-7550 | 7000-12500 | 10000-20000 | 18000-36000 | 28200-56500 |
| Evaporation water kg/h | 12-17 | 40-70 | 80-150 | 150-250 | 230-4250 | 300-600 | 600-1000 | 1000-1500 |
| Maximum installed capacity kw | 10 | 20 | 40 | 65 | 85 | 105 | 150 | 230 |
| Maximum height m | 4.0 | 4.8 | 5.8 | 6.5 | 7.1 | 7.8 | 8.8 | 10.1 |
| Land area m 2 | 15 | 20 | 28 | 35 | 40 | 52 | 80 | 150 |
Note:
1. Moisture evaporation is the amount of water evaporated per hour when
the inlet air temperature is 1 80 o C, and the outlet air temperature
is 80 o C.
??
2. Special designs can be made for users except the above models.
??
3. Installation above The capacity is standard and can be significantly
reduced depending on the power of different materials.
Processing materials and characteristics (based on type 6 flash evaporation)
| Material name | Stearic acid | Aluminum hydroxide | Zinc carbonate | Insecticide list | TMTD | DSD acid | Iron oxide red | Strontium dioxide | Cuprous chloride | White carbon black |
| Inlet air temperature o C | 150 | 180 | 150 | 120 | 140 | 150 | 200 | 180 | 200 | 280 |
| Initial moisture content% | 80 | 55 | 80 | 30 | 65 | 60 | 60 | 45 | 30 | 85 |
| Final moisture content% | 0.5 | 1.5 | 1.0 | 1.0 | 0.5 | 0.5 | 0.5 | 1.0 | 3.0 | 5.0 |
| Actual drying capacity kg/h | 140-160 | 250-280 | 130-170 | 80-110 | 80-120 | 80-120 | 300-350 | 280-320 | 290-310 | 250-300 |
| Material name | Accelerator | Oil soluble ink | Manganese zinc oxide | Yan Qinglan | Calcium Citrate | Ultrafine calcium carbonate | Slurry treatment agent | Sodium dioxyisocyanurate | Sodium trioxyisocyanurate |
| Inlet air temperature oC | 150 | 150 | 120 | 150 | 140 | 160 | 200 | 180 | 150 |
| Initial moisture content% | 60 | 45 | 30 | 55 | 40 | 70 | 75 | 25 | 30 |
| Final moisture content% | 0.5 | 2.0 | 1.0 | 1.0 | 1.0 | 1.5 | 5.0 | 0.2-2 | 1.0 |
| Actual drying capacity kg/h | 80-110 | 350-380 | 120-150 | 160-180 | 300-350 | 430-470 | 290-310 | 80-120 | 90-150 |
